SX-GENE v2.0

Designed for the METRIX GX1025 & GX1050 generators, SX-GENE can be bused to:

• control the generator and record or restore configurations;

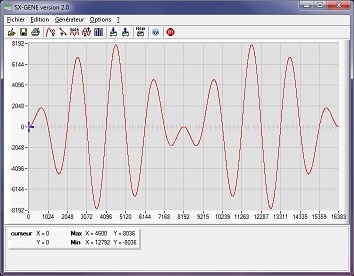

• load the arbitrary signals generated from a graphical curve editor or mathematical model editor or signals from curves recovered from an oscilloscope (TRC files).



ConfigurationSystem

• Windows XP/Vista/7/8.
• PC with 1 GHz processor or higher, 512 MB RAM, 100 GB HD.Languages Version in 5 languages: English, German, Spanish, French and Italian.CAUTION:The version of the generator's firmware must be at least v1.01.01.27.To check: "Utility" key, "1/2" menu and then "EditInfo".If an upgrade is necessary, download the file "Firmware v1.01.01.27" onto a USB key, insert the USB key in the front panel of the generator and start the upgrade."Utility" key, "1/2" menu and then "Update":- Select "USB Device (O:)" with the up and down arrows,- Select the file with the "Browser/File" menu and the up and down arrows,- Choose the "Recall" menu- Restart the generator when the following message is displayed:"Update is finished. Restart!".
