SCOPEin@BOX v2.07 software

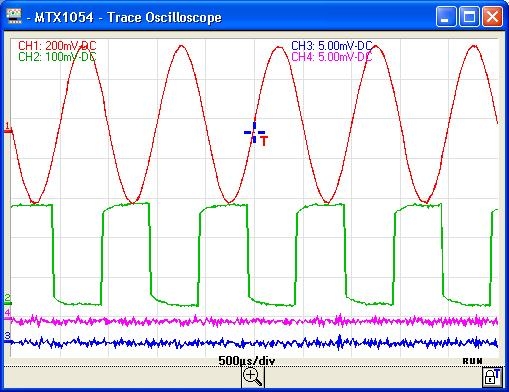

- Automatic detection of the instruments connected, - Better representation of the trace in the graphs, - Keyboard shortcuts, - Control of the LX1600 logic analyser probe.
Your oscilloscopes
- MTX1052C / MTX1054C,
- MTX1052B / MTX1054B,
- MTX1052 / MTX1054. System
- Windows XP/Vista/7/8.
- PC with Pentium IV processor or higher, 128 MB RAM, 4 GB HD equipped with a USB port and a network output.LanguagesVersion in 5 languages: German, English, Spanish, French and Italian.
FirmwareMTX1052/54B et MTX1052/54C :
- Recover the file corresponding to the model to be upgraded,
- unzip it,
- use the "Software upgrade ..." option in the SCOPEin@BOX"Tools" menu.
CAUTION: For MTX1052/MTX1054 models with v1.03, you must install version 1.04 before installing this version of SCOPEin@BOX.
Procedure:
- doswnload the x03127E00_v1_04.zip file below,
- unzip it,
- use the "Software upgrade ..." option in the SCOPEin@BOX v1.00 "Tools" menu,
- follow the instructions on the screen,
- when the upgrade has finished, uninstall SCOPEin@BOX v1.00,
- then download the latest version of SCOPEin@BOX,
- install the latest version.
